Description

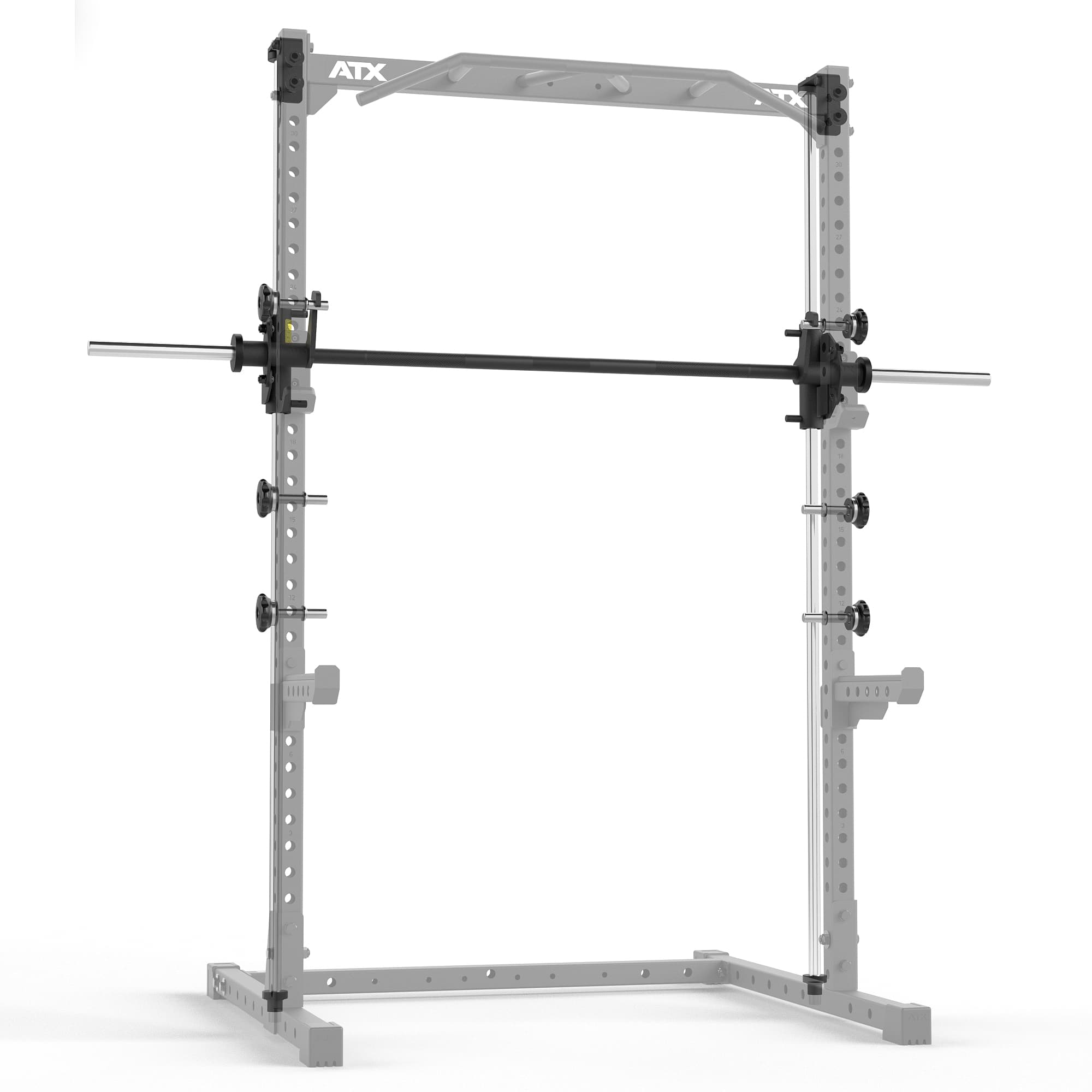

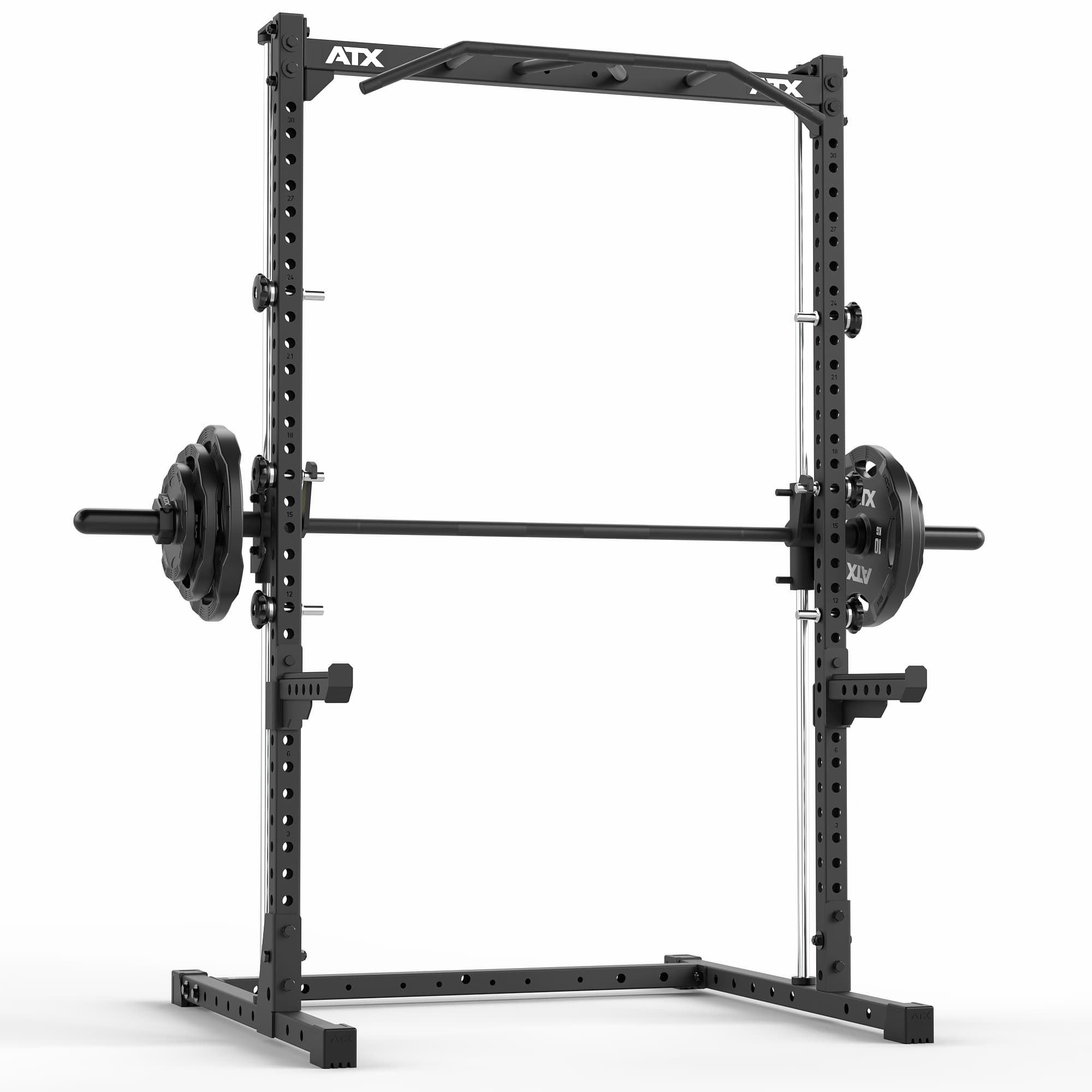

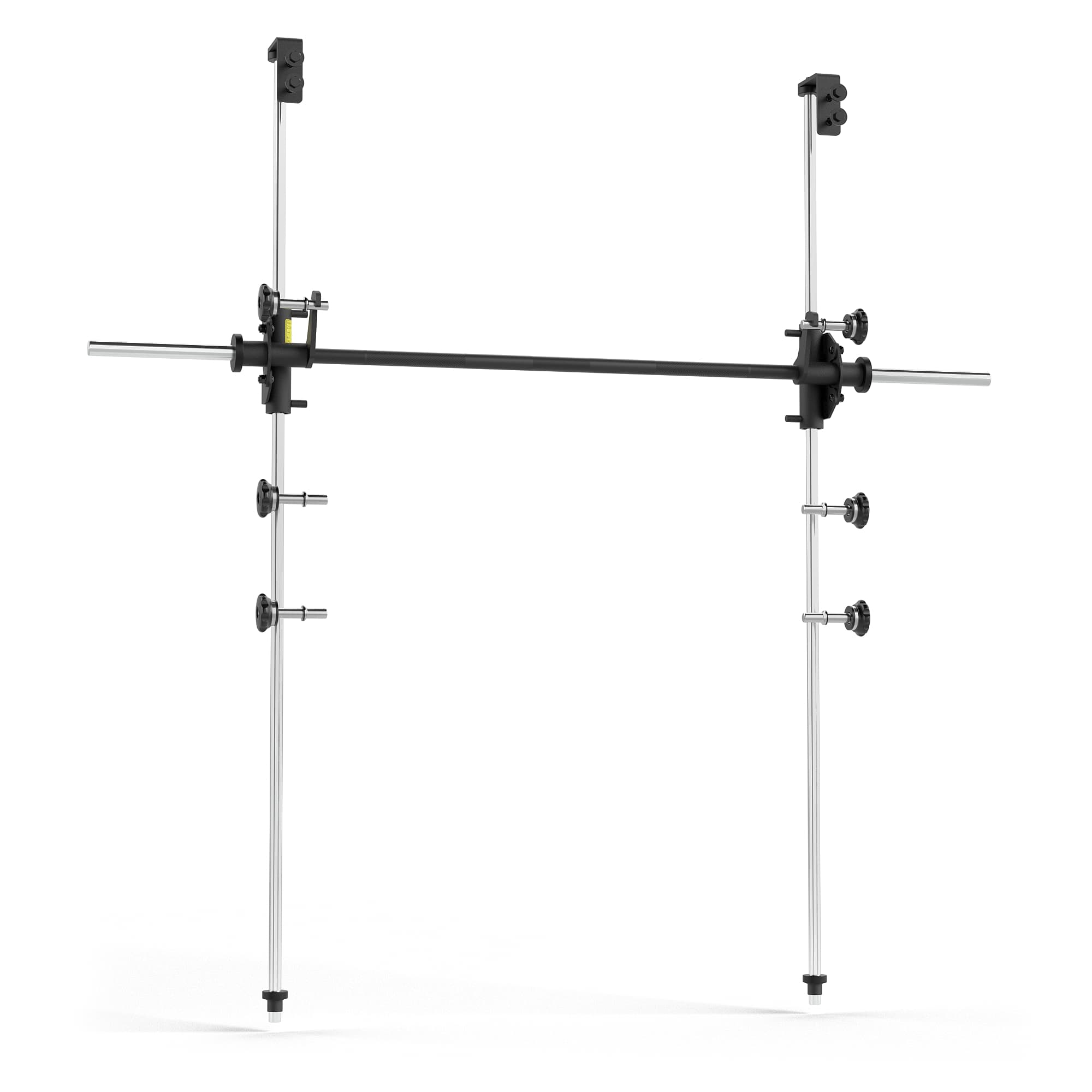

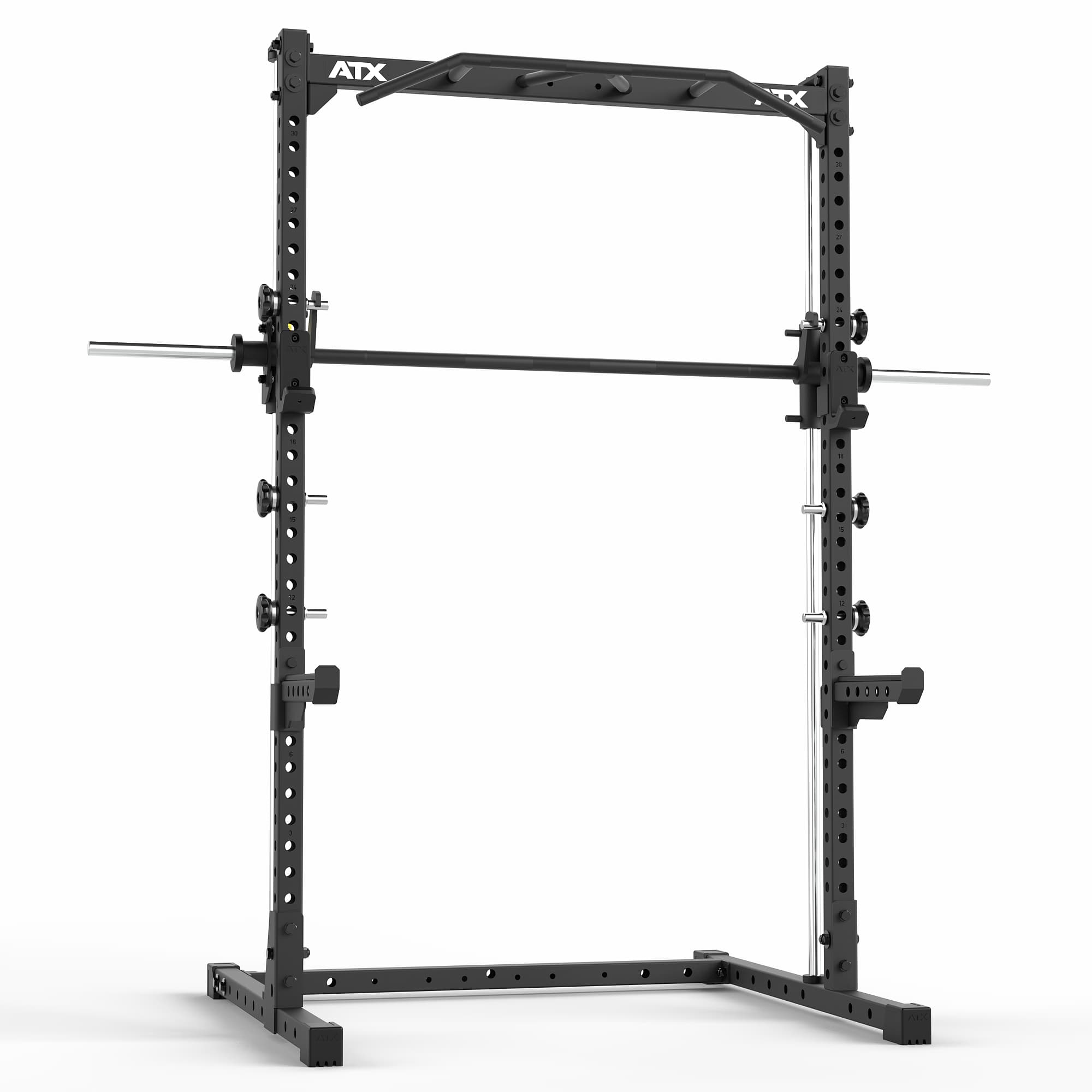

This product is a Smith machine attachment specifically designed for the ATX Fitness Half Rack 500 series.

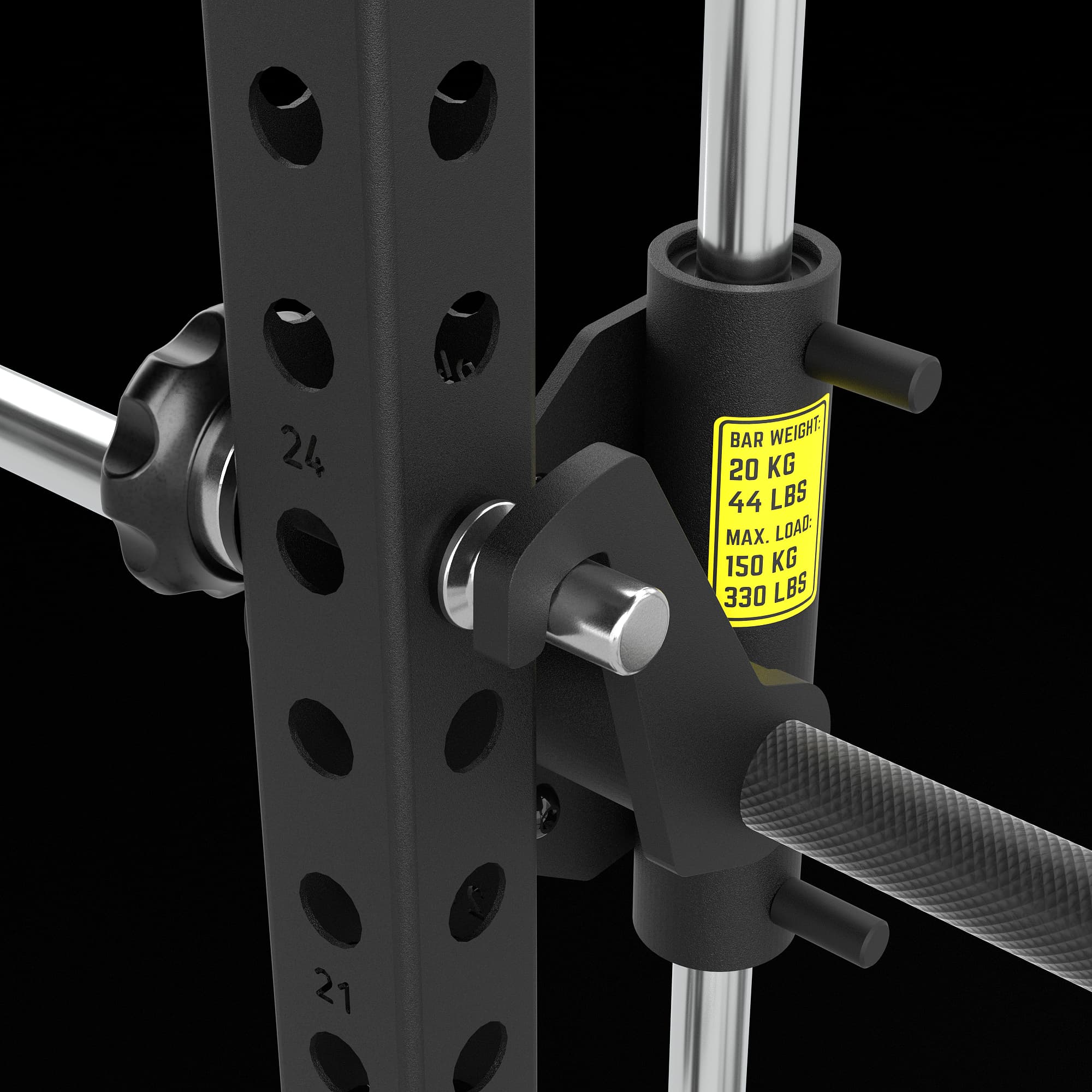

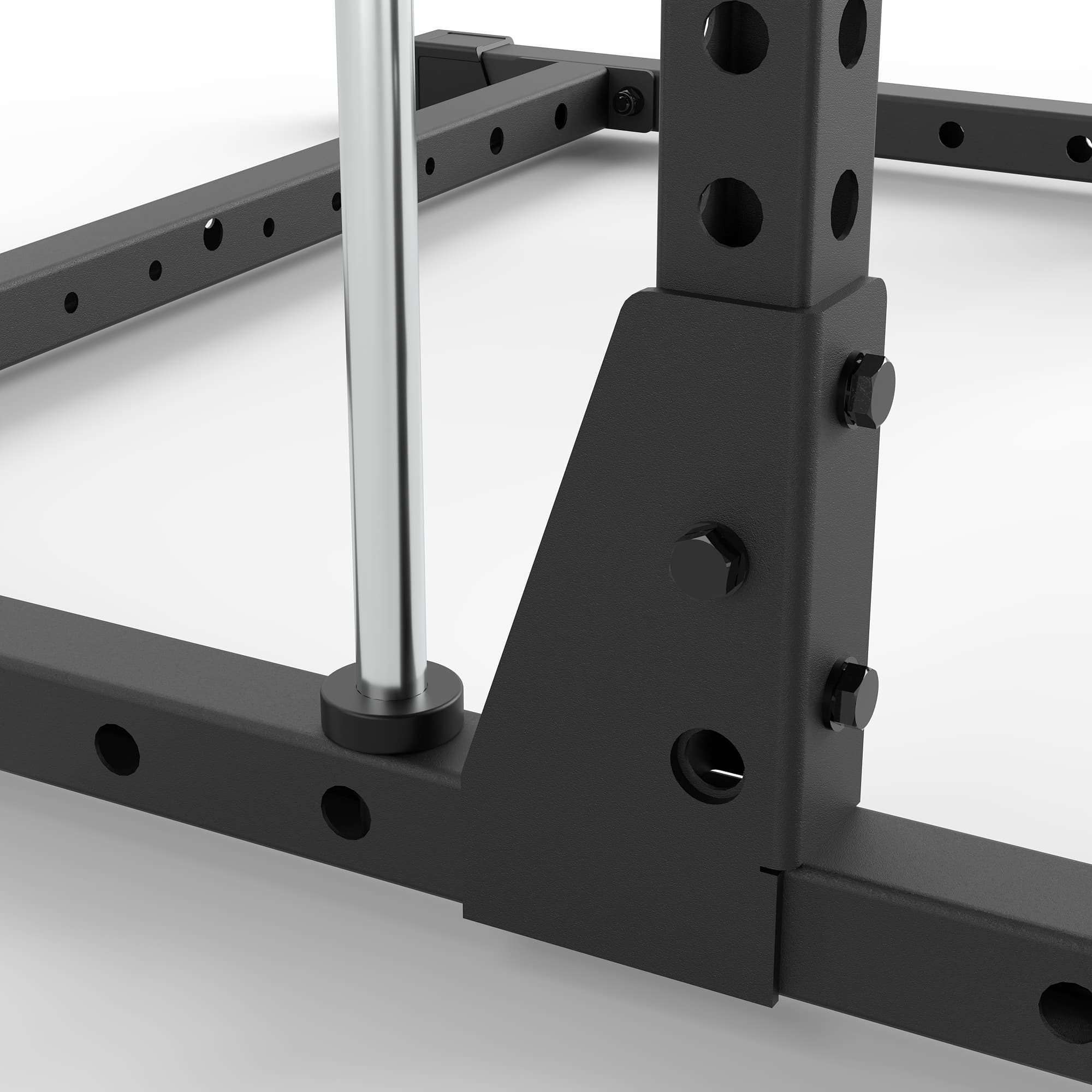

Featuring a 25mm diameter solid steel guide rod and 4 rows of linear ball bearings, it ensures extremely smooth operation. It is designed to provide the maximum range of motion from the base to the top of the rack.
The barbell weighs 20kg and can handle loads of up to 150kg. The shaft has a diameter of 32mm, features knurling and markings, and has a black chrome finish.
The standard plate holders have a diameter of 30mm, but a 50mm adapter is included, allowing you to use common 50mm diameter weight plates.

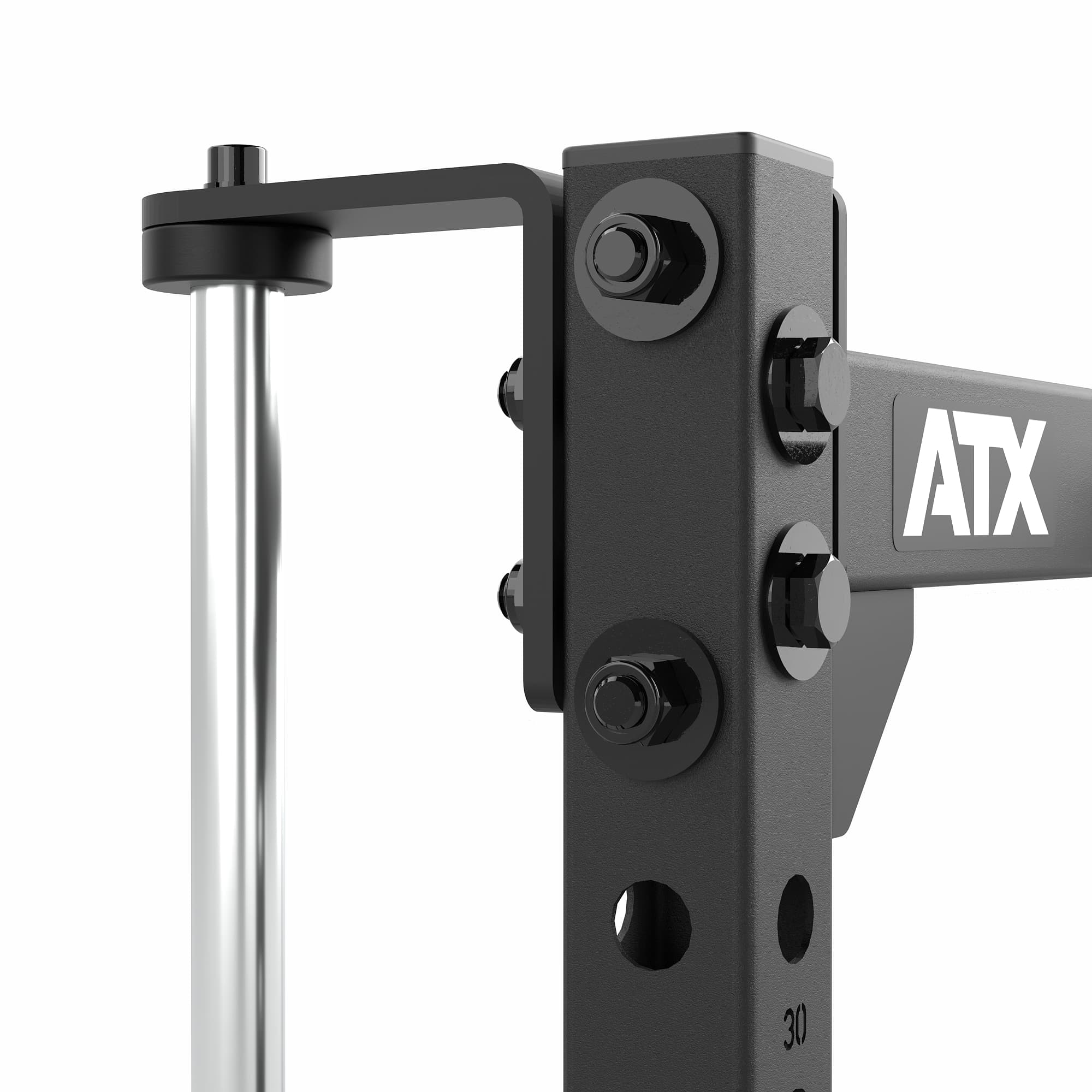

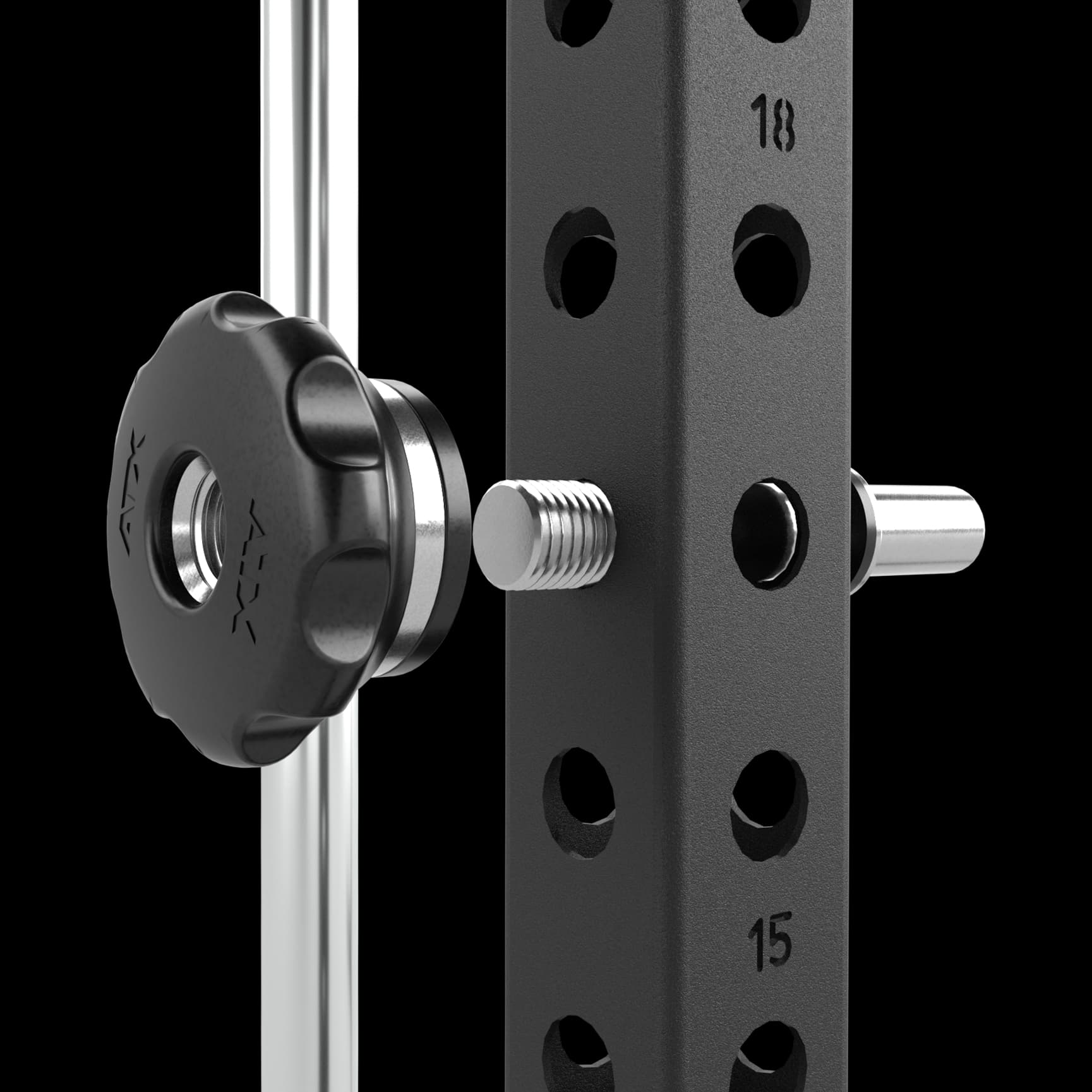

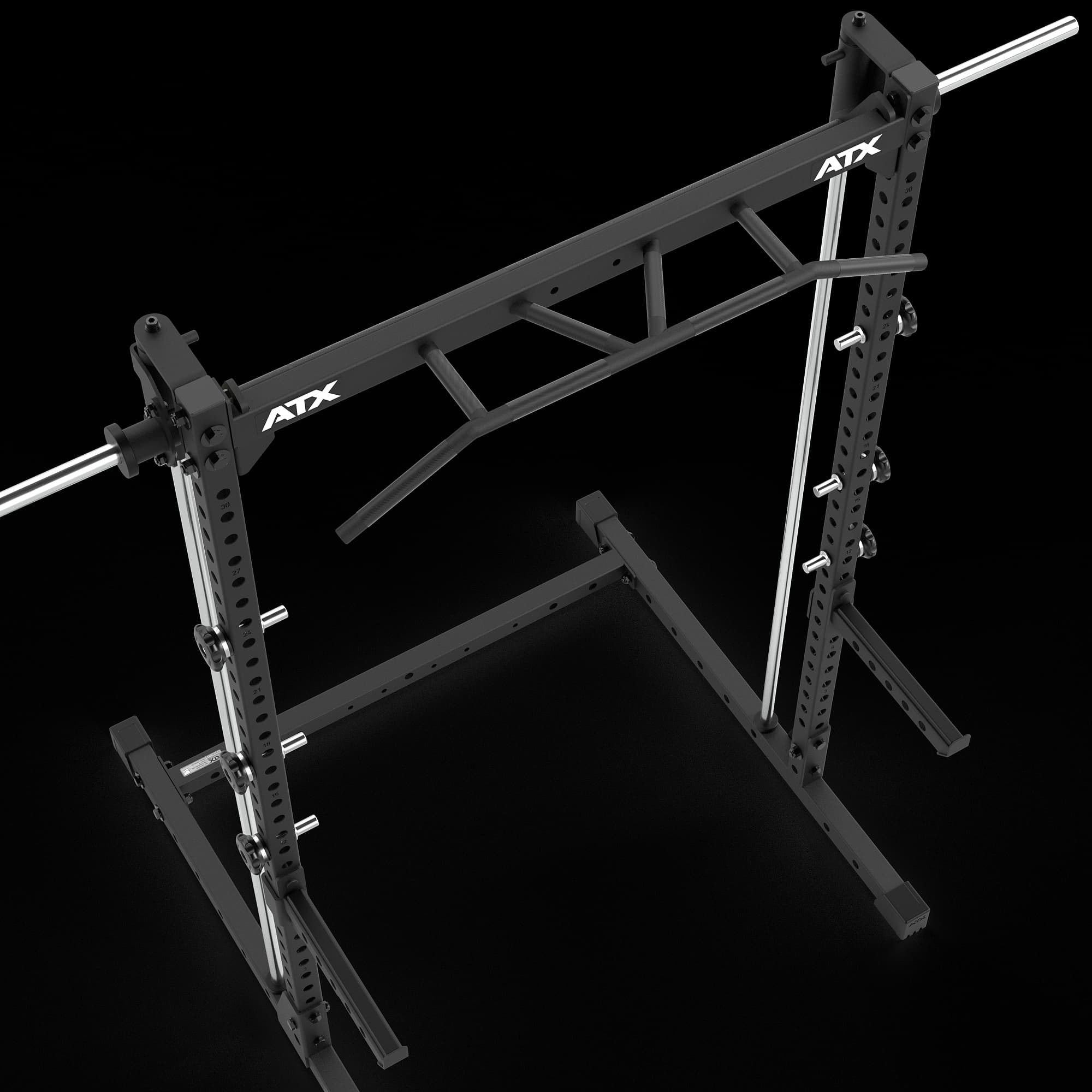

The included bar catch bolts and safeties can be easily adjusted for height, ensuring ample safety. The barbell can be hung and stored on top of the rack, so it won't get in the way during other exercises.
*This product requires assembly. ATX products do not come with tools, so please prepare them separately.

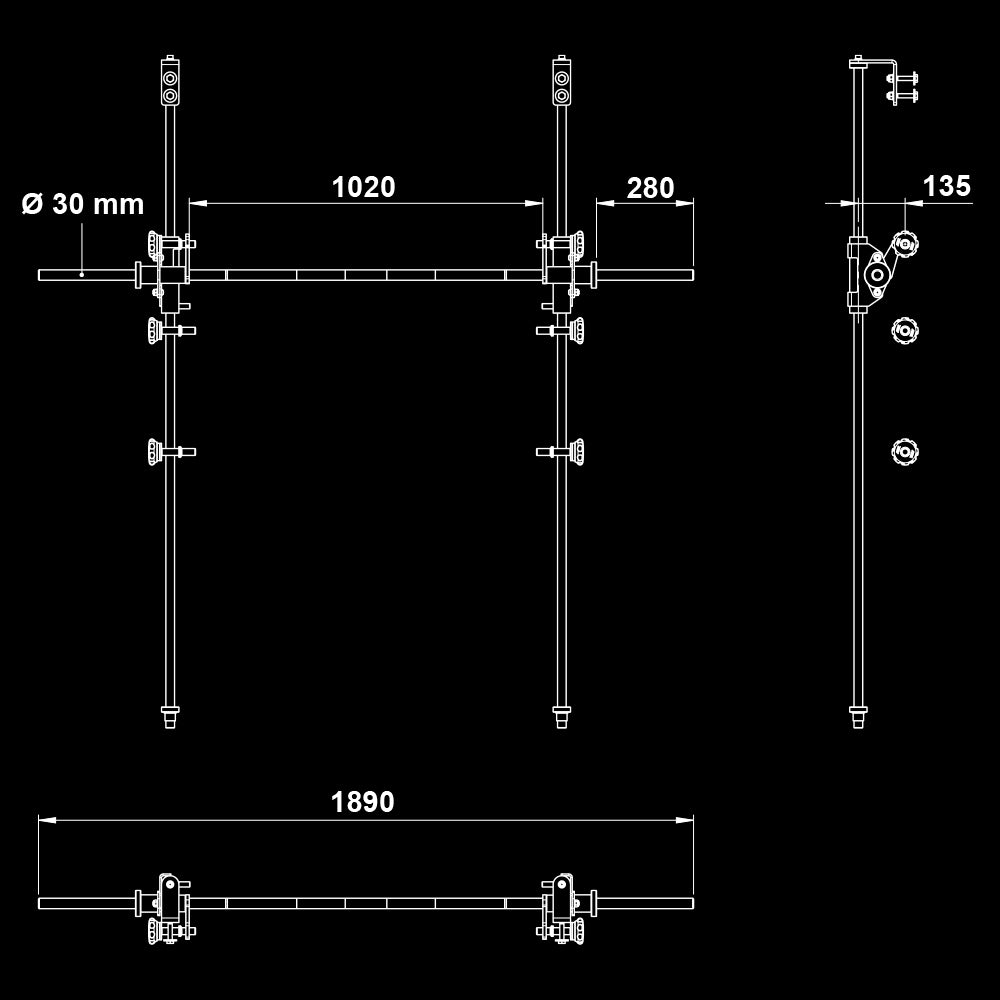

Product Specifications
| Total Weight |
40kg |
| Height |
194cm |
| Width |
189cm |
| Barbell Weight |
20kg |
| Shaft Diameter |
32mm |
| Plate Holder Diameter |
30mm (2 x 50mm adapters included) |
| Load Capacity |
150kg |
| Accessories |
6 bar catch bolts (3 pairs) |
| Compatibility |
ATX-HRX-510 |
