Description
*If you are purchasing a power rack for the first time, please refer to this article.

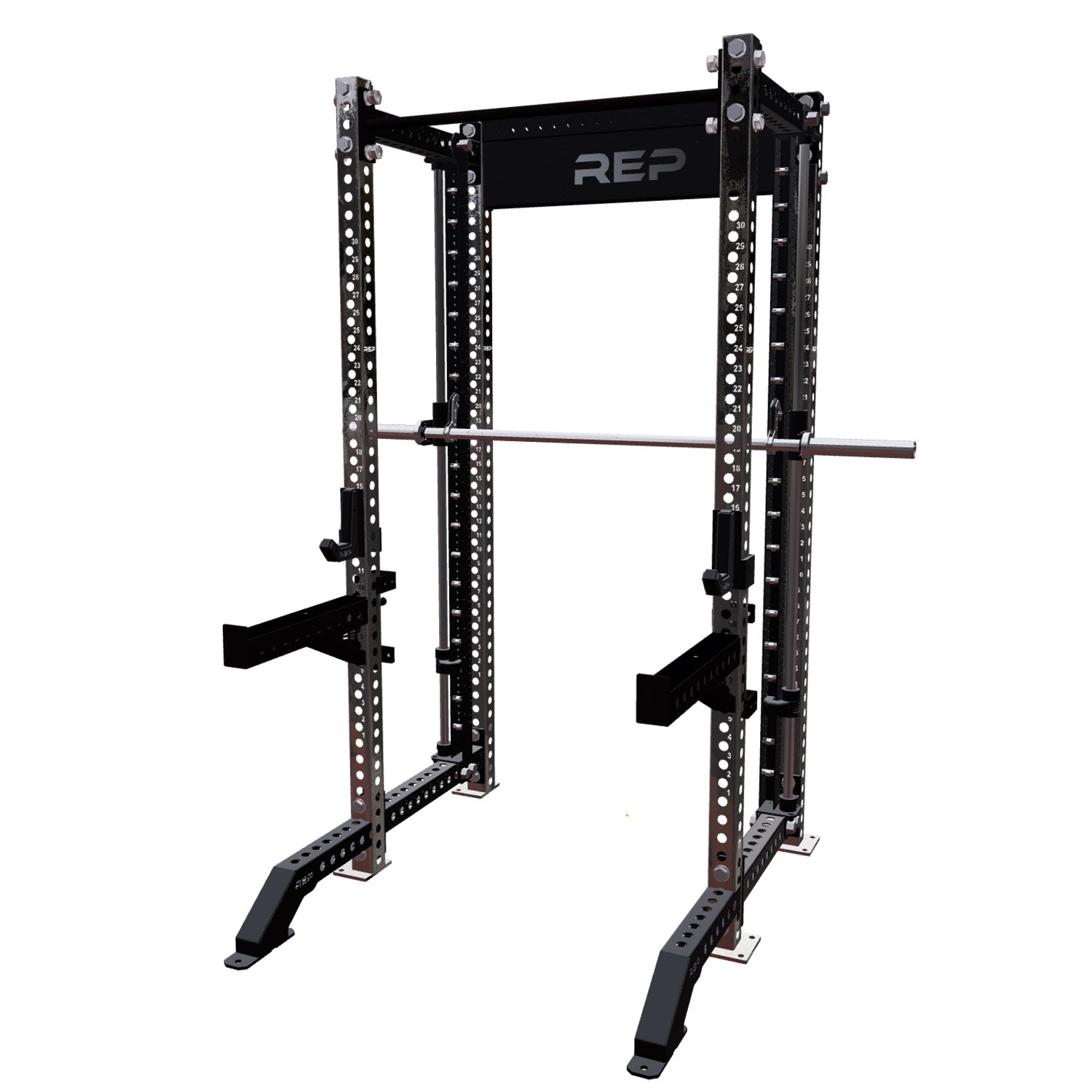

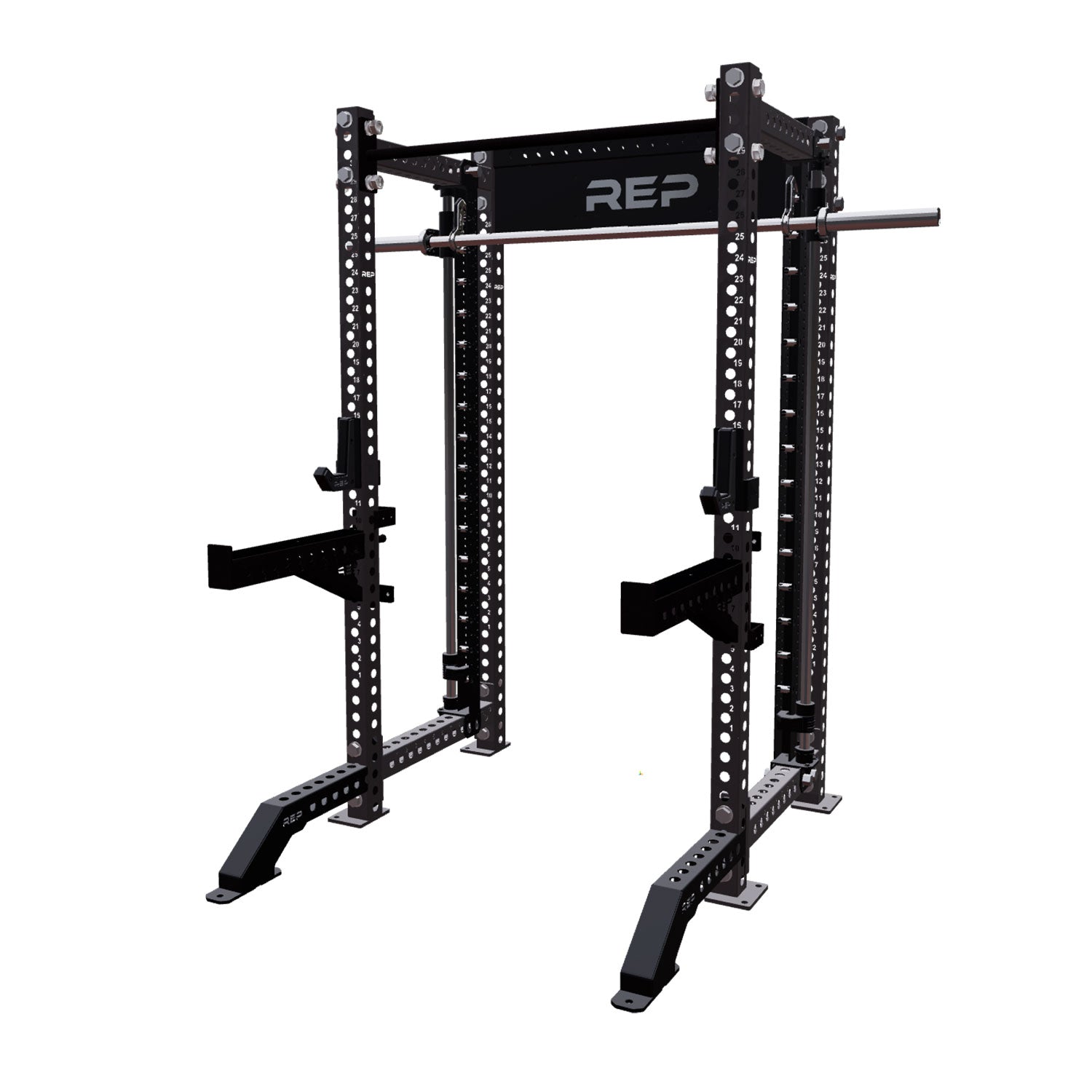

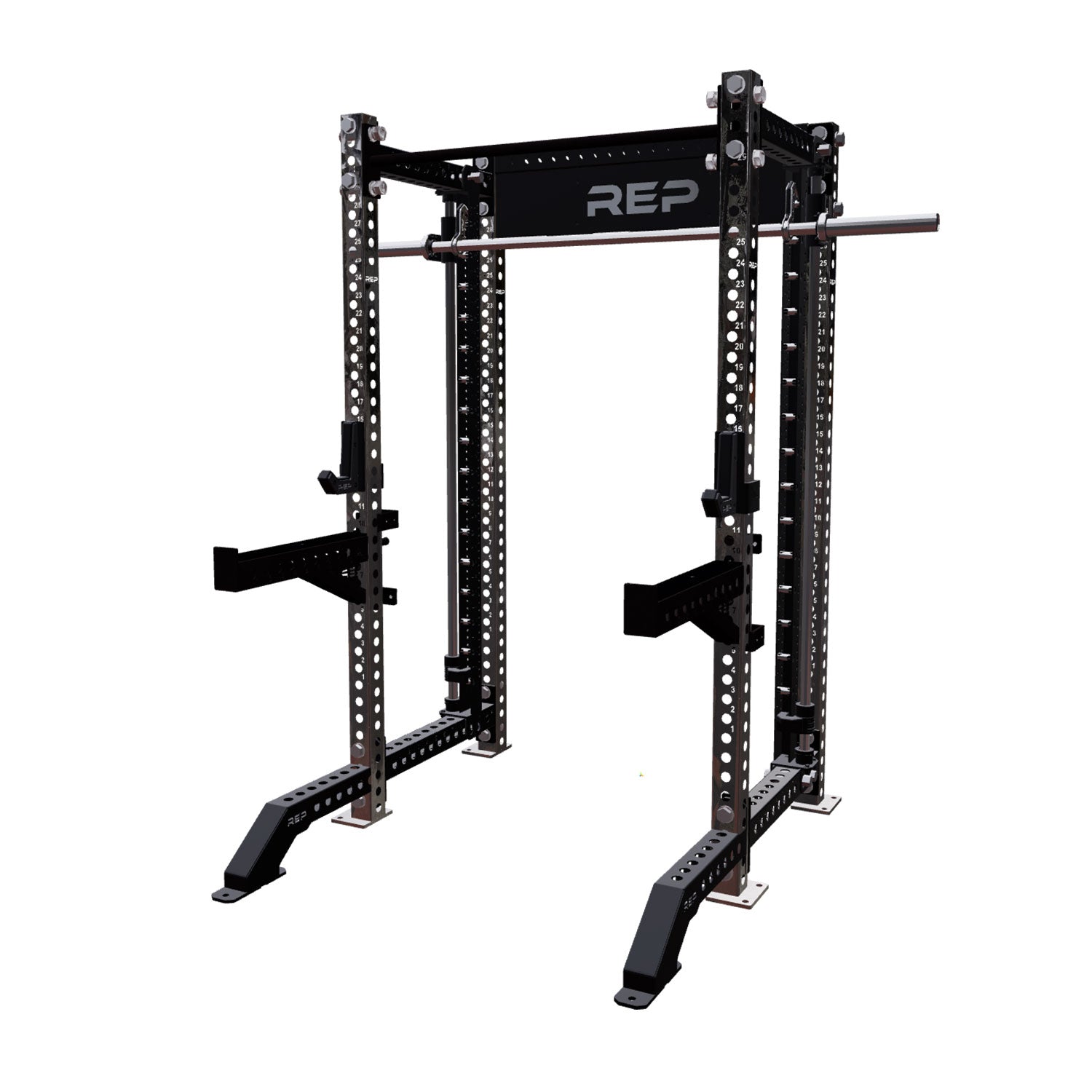

This product is a setup that features the best-selling PR-5000 Half Rack equipped with a Smith Machine Attachment. The new 26-inch crossmember allows the Smith Machine to be placed inside the rack, freeing up space outside the rack for free weight exercises.
This product is made of commercial-grade 3x3 inch, 11-gauge steel, with a rack capacity of approximately 453 kg (1,000 lbs). The entire rack has 1-inch pinholes spaced 2 inches apart, and all holes are laser-cut with numbers, making it easy to align attachments and set up your training.
The PR-5000 is REP's most customizable rack system, supporting a wide range of attachment options. You can add lat pulldown & low row attachments and more to create your own ideal rack.
For the pull-up bar, you can choose between two types: the standard 32mm diameter pull-up bar or the globe pull-up bar. The multi-grip pull-up bar restricts the position of the Smith machine attachment, so we recommend the following two products instead:
Crossmember Multi-Grip Pull-Up Bar
Logo Plate Crossmember (Compact)
There are three types of J-cups available: the cost-effective standard J-cup, the most popular flat sandwich J-cup, and the round sandwich J-cup with a rounded hook section.
The PR-5000 undergoes laser processing, robotic welding, and robotic painting all within our own factory, ensuring thorough quality control. We are confident in presenting it as a best-selling product in the US.
*In the product image, the Smith machine attachment is installed just in front of the rear uprights, but to avoid interference when using weight horns, please attach it just behind the front uprights.
Product Specifications/Specs
| Weight |
Approx. 210kg |
| Height |
202cm or 235cm |
| Width |
Outer dimensions: 120cm
Inner dimensions: 105cm
|
| Depth |
147cm |
| Hole Size |
1" - 2.54cm |
| Hole Spacing |
2" - 5.08cm |
| Material |
3x3" 11-gauge steel |
| Surface Treatment |
Powder Coating |
| Weight Capacity (Static) |
454kg |
| Smith Machine Weight Capacity |
200kg (including 15kg bar weight) |
| Included Accessories |
Uprights, side crossmembers (26"), front foot extensions 2.0, Smith machine attachment, bolt set
*Logo plate crossmember and pull-up bar are essential for assembly (please remove from cart if not needed)
*Plate horns, safeties, J-cups, etc. are optional (not included if not selected) |
| Color Notes |
The following parts have fixed colors and cannot be changed:
Front Foot Extensions 2.0: Metallic Black
J-Cups: Metallic Black
Pull-Up Bar: Matte Black
Spotter Arms: Matte Black

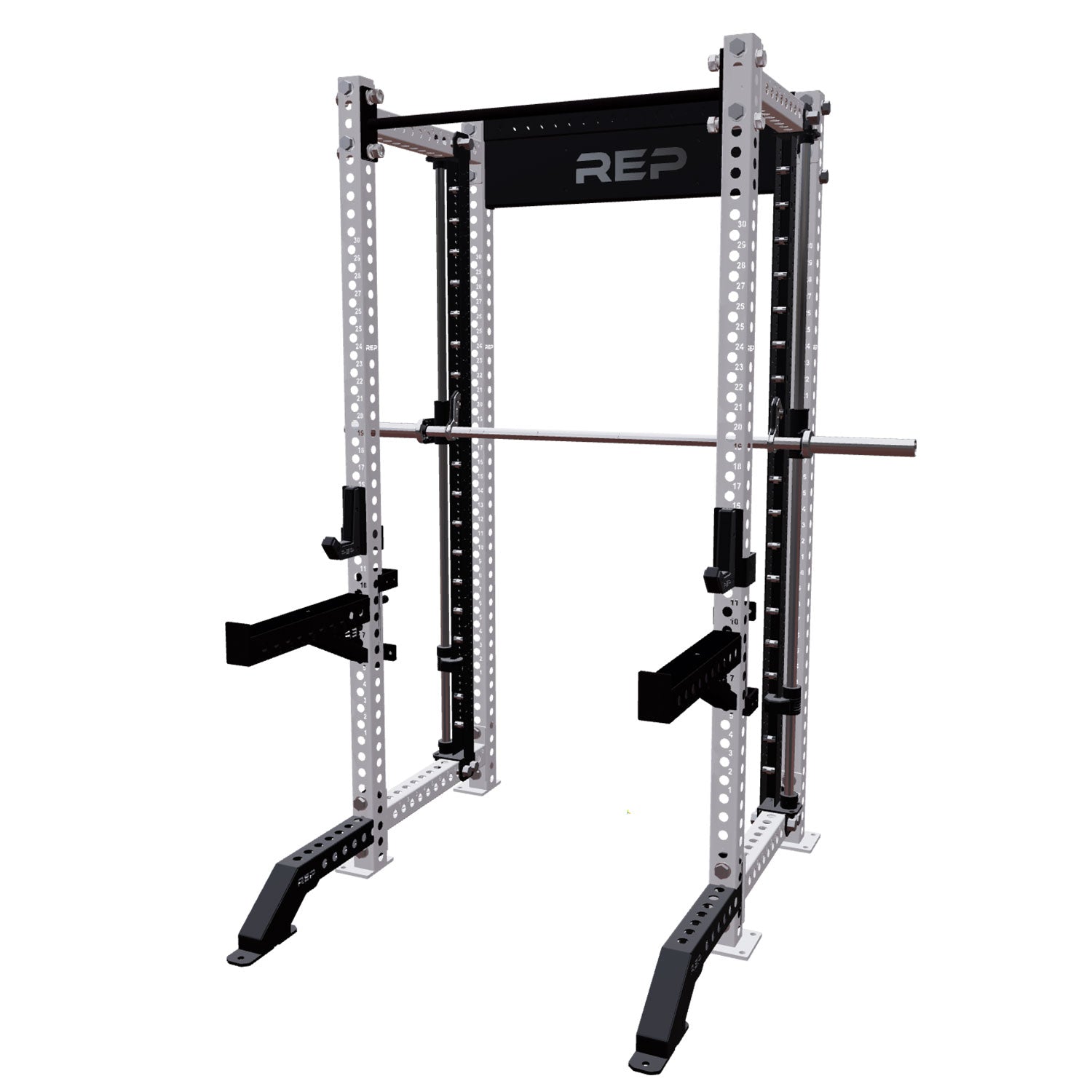

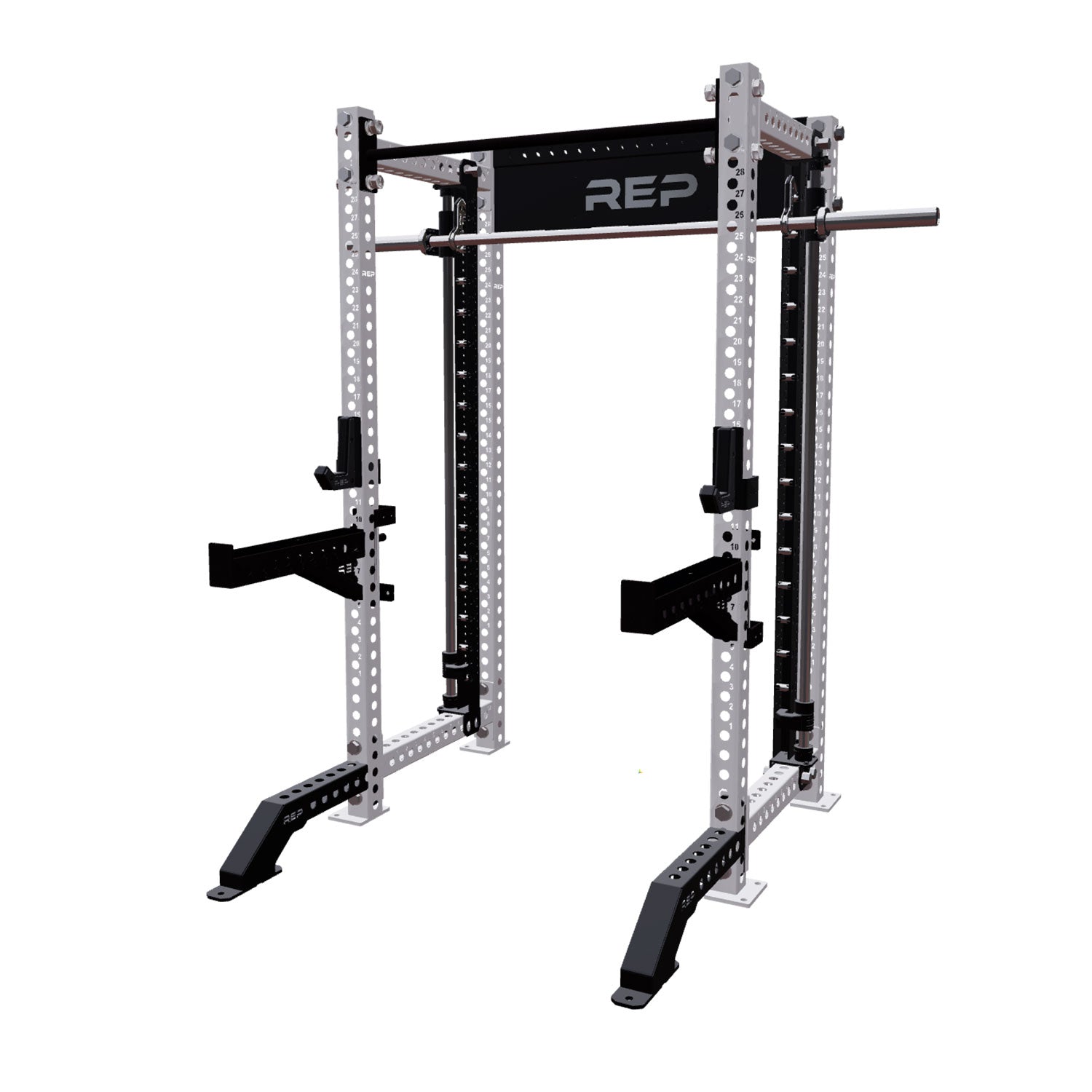

*If stainless steel is selected, only the four uprights will be stainless steel. The crossmembers will be metallic black.
|
